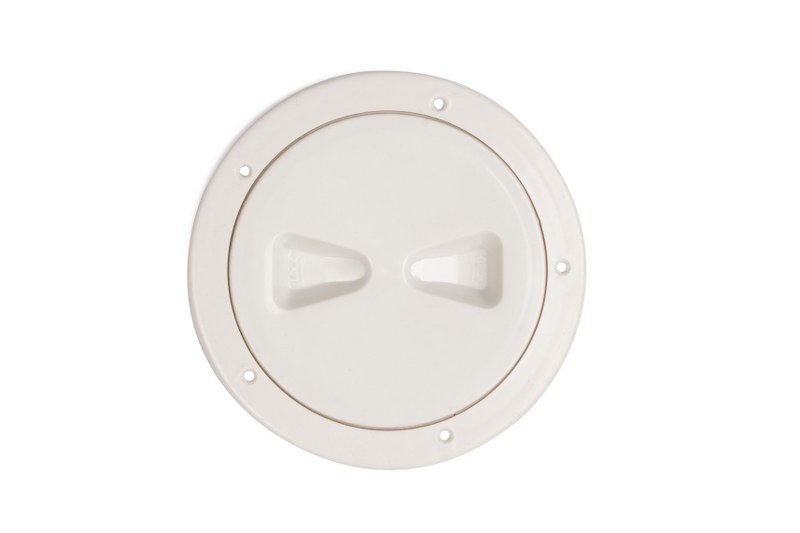

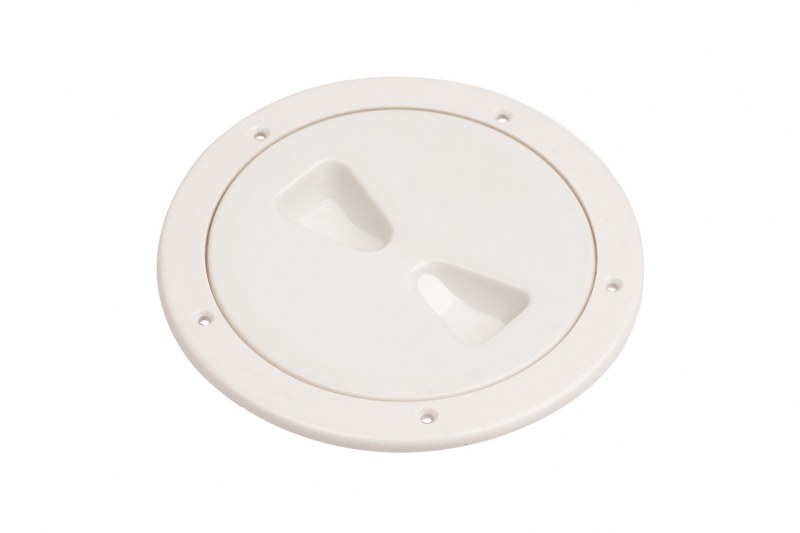

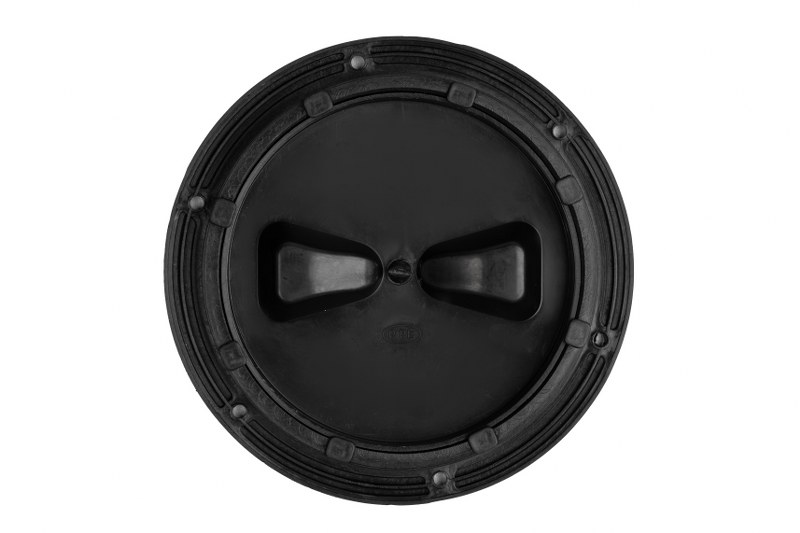

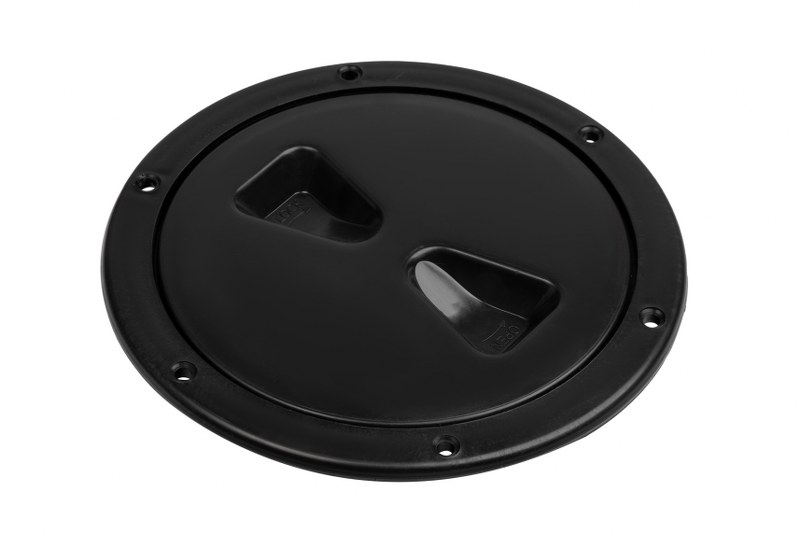

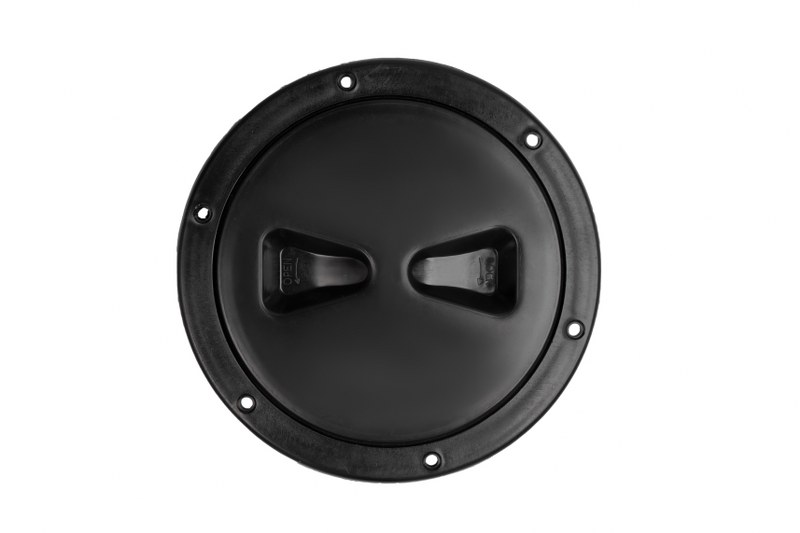

Flat Lid And Ring

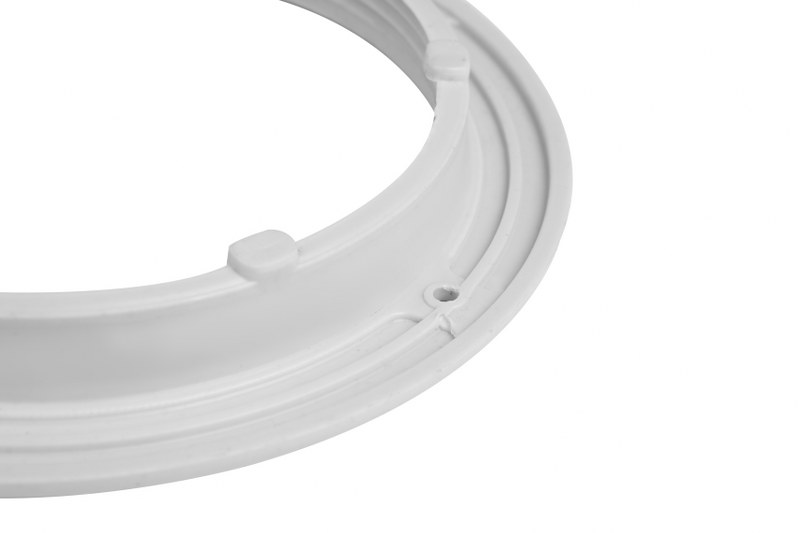

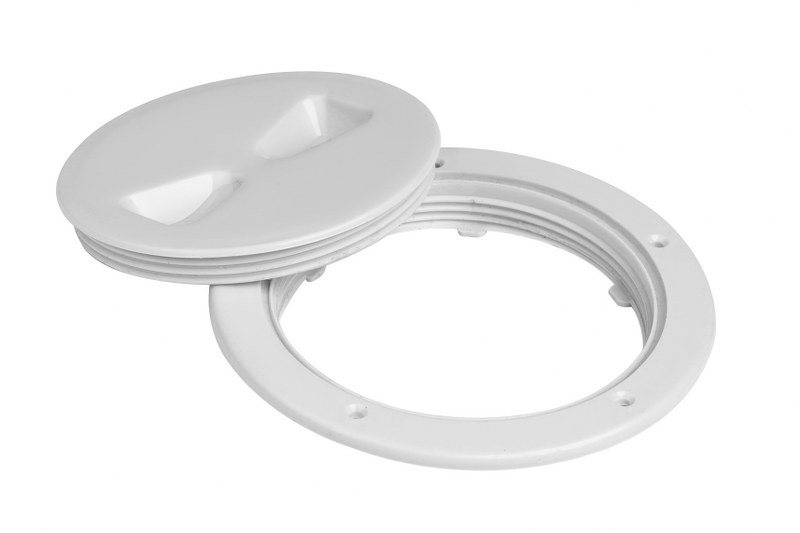

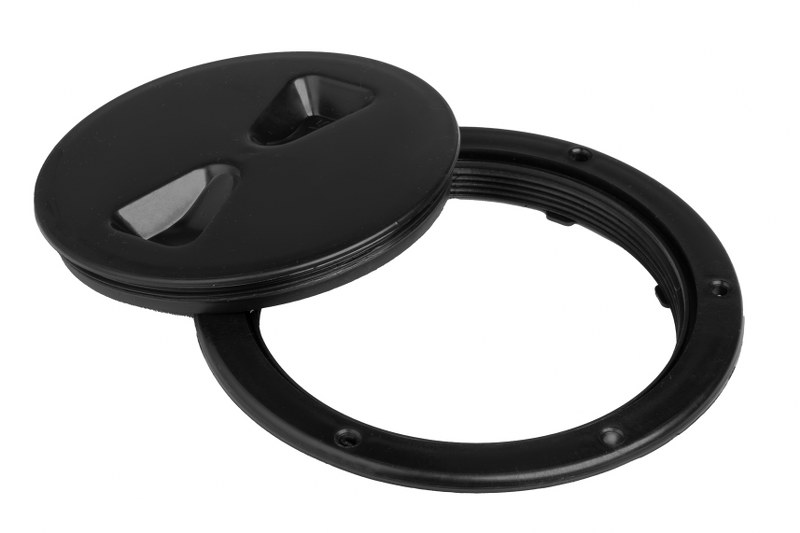

  • The ring is first secured on to opening using self-taping screws. The lid is then threaded on the ring.
  • The lids grips are ingressed in to the lid giving it a flat face.
  • The lid is closed (does not have a breather / vent).
  • The lid has a glossy finish making it cosmetically appealing.

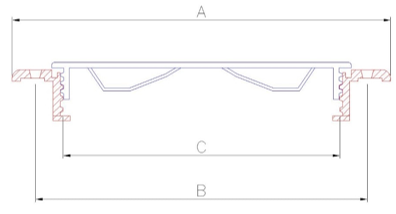

    Part # Part Name Dimensions Weight
    A B C
    XRH 910W 4″ Flat Screw Lid & Ring in White Color 134mm 114mm 97mm 50g
    XRH 910B 4″ Flat Screw Lid & Ring in Black Color 134mm 114mm 97mm 50g
    XRH 920W 5″ Flat Screw Lid & Ring in White Color 170mm 155mm 130mm 95g
    XRH 920B 5″ Flat Screw Lid & Ring in Black Color 170mm 155mm 130mm 95g
    XRH 930W 6″ Flat Screw Lid & Ring in White Color 194mm 177mm 152mm 123g
    XRH 930B 6″ Flat Screw Lid & Ring in Black Color 194mm 177mm 152mm 123g
    XRH 940W 8″ Flat Screw Lid & Ring in White Color 290mm 270mm 235mm 320g
    XRH 940B 8″ Flat Screw Lid & Ring in Black Color 290mm 270mm 235mm 320g
