| Part # | Part Name | |||
| XRP K30 | Large Foot Pump – High Profile | |||

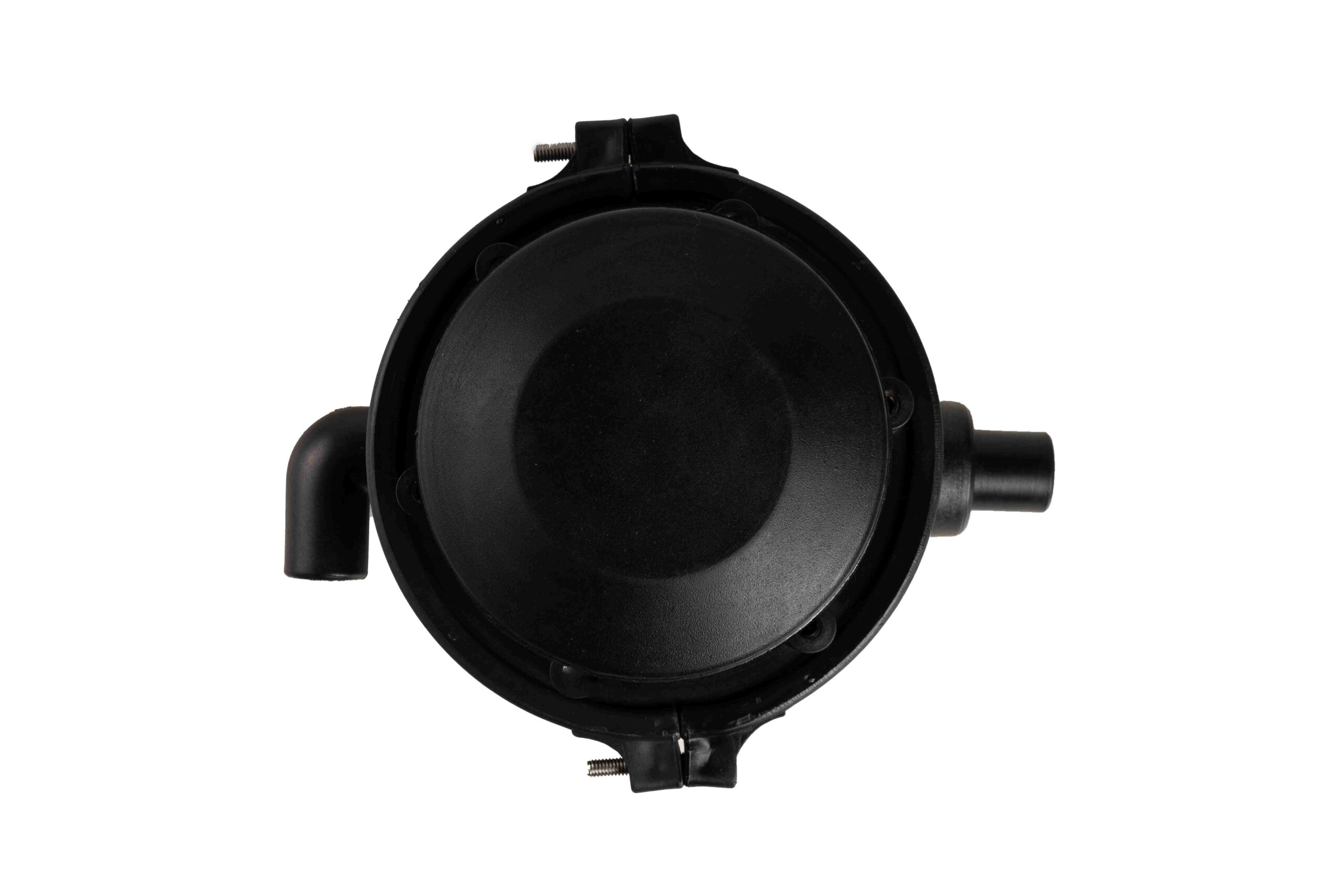

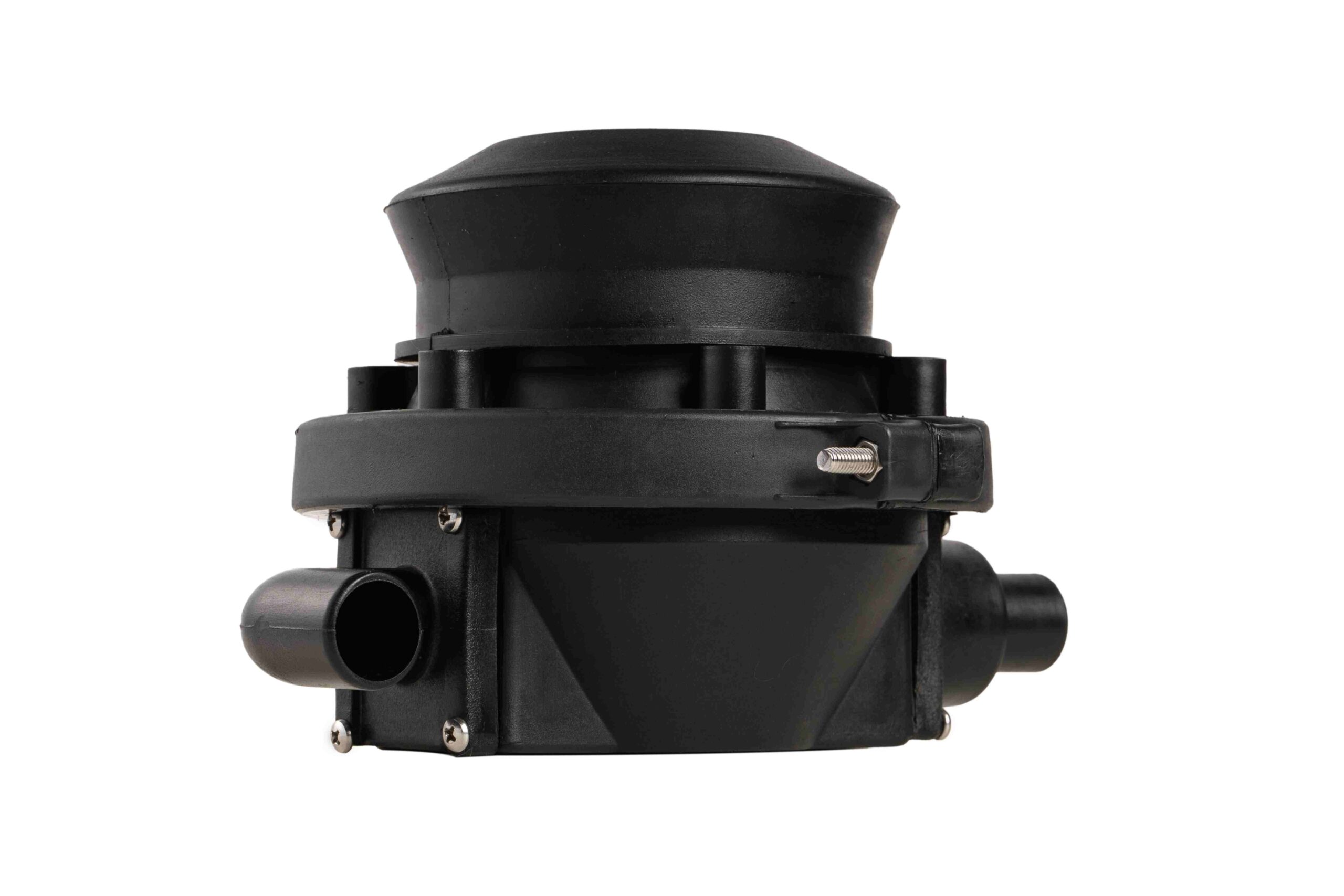

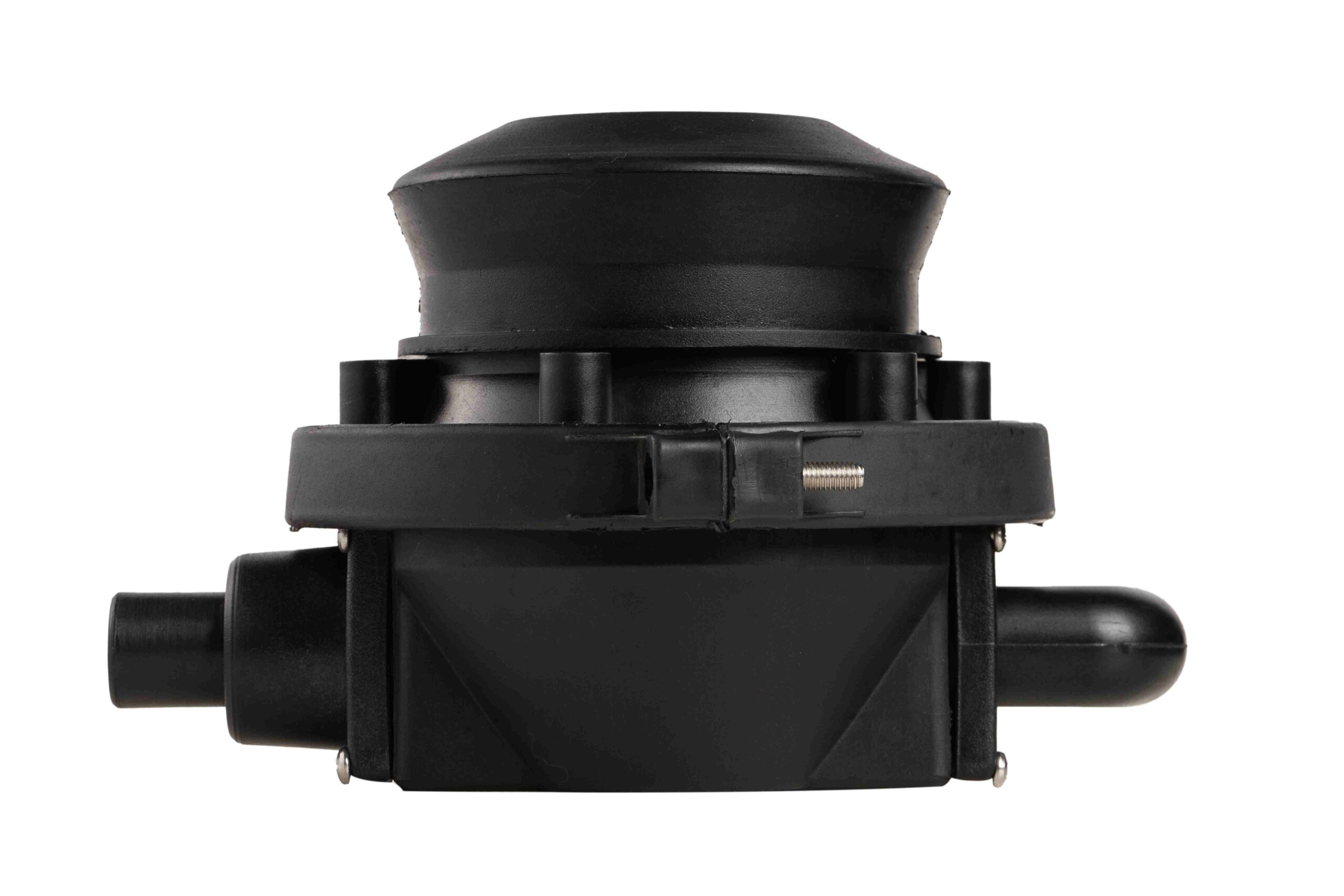

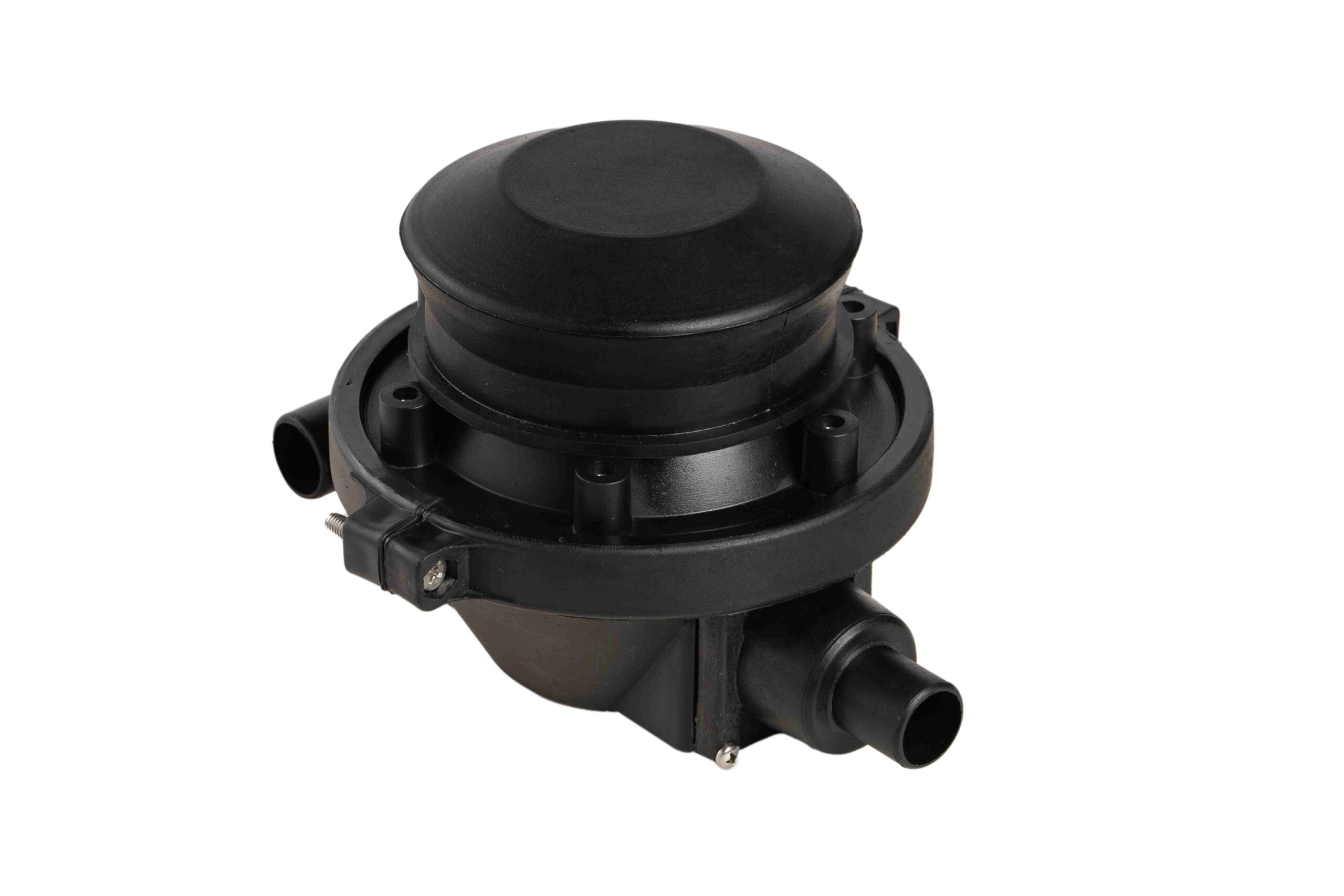

Large Foot Pump - High Profile (Recirculating Pump)

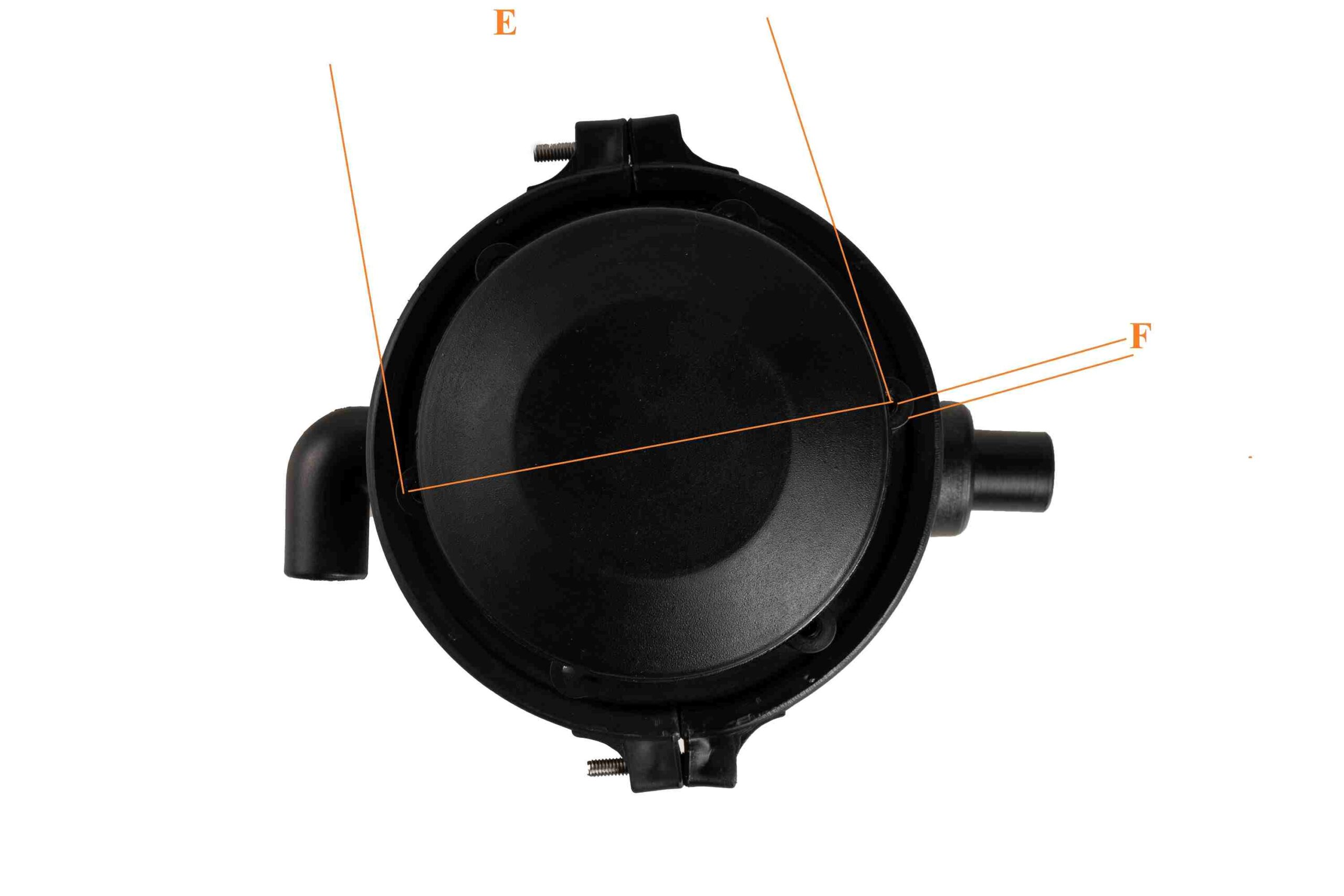

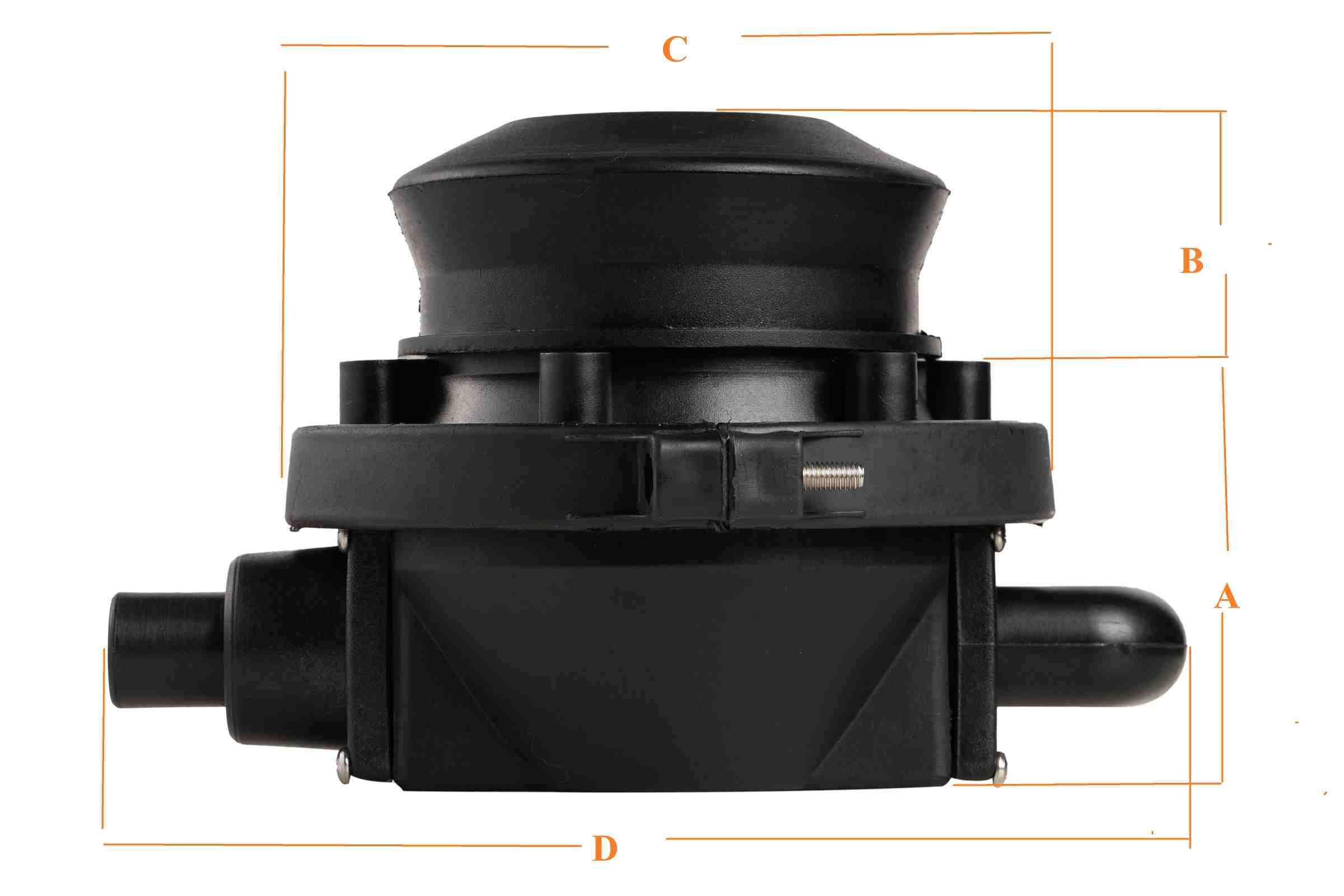

| Dimensions | |||||||
| A | B | C | D | E | F | Weight | |
| Inches | 3.66″ | 1.97 | 9.21 | 5.137 | 2.45 | M6 Thread | |
| mm | 93 | 49.5 | 234 | 130.5 | 65 | M6 Thread | |
| Material | |||||
| Pump Body | Glass Reinfoced Nylon | ||||
| Connectors / Barb Hose | Glass Reinfoced Nylon | ||||
| Umbrella / One Way Valves | Nitrile Rubber | ||||
| Diaphragm / Rubber Boot | Neoprene | ||||
| Spring & Hardware | SS 304 | ||||
| Performance | |||||
| Flow Rate per Pump | 5.0 oz / 150ml | ||||
| Max Lift | 5 ft / 1.5 Meter) | ||||
| Max Head | 10ft / 3 Meter | ||||
| Mx Service Temp | 167 Farenheit / 75 Celcius | ||||
| Replacement Parts / Spares | |||||
| RRP K38 | Rubber Diaphram / Boot /Cover | ||||
| RRP K34 | SS Spring | ||||

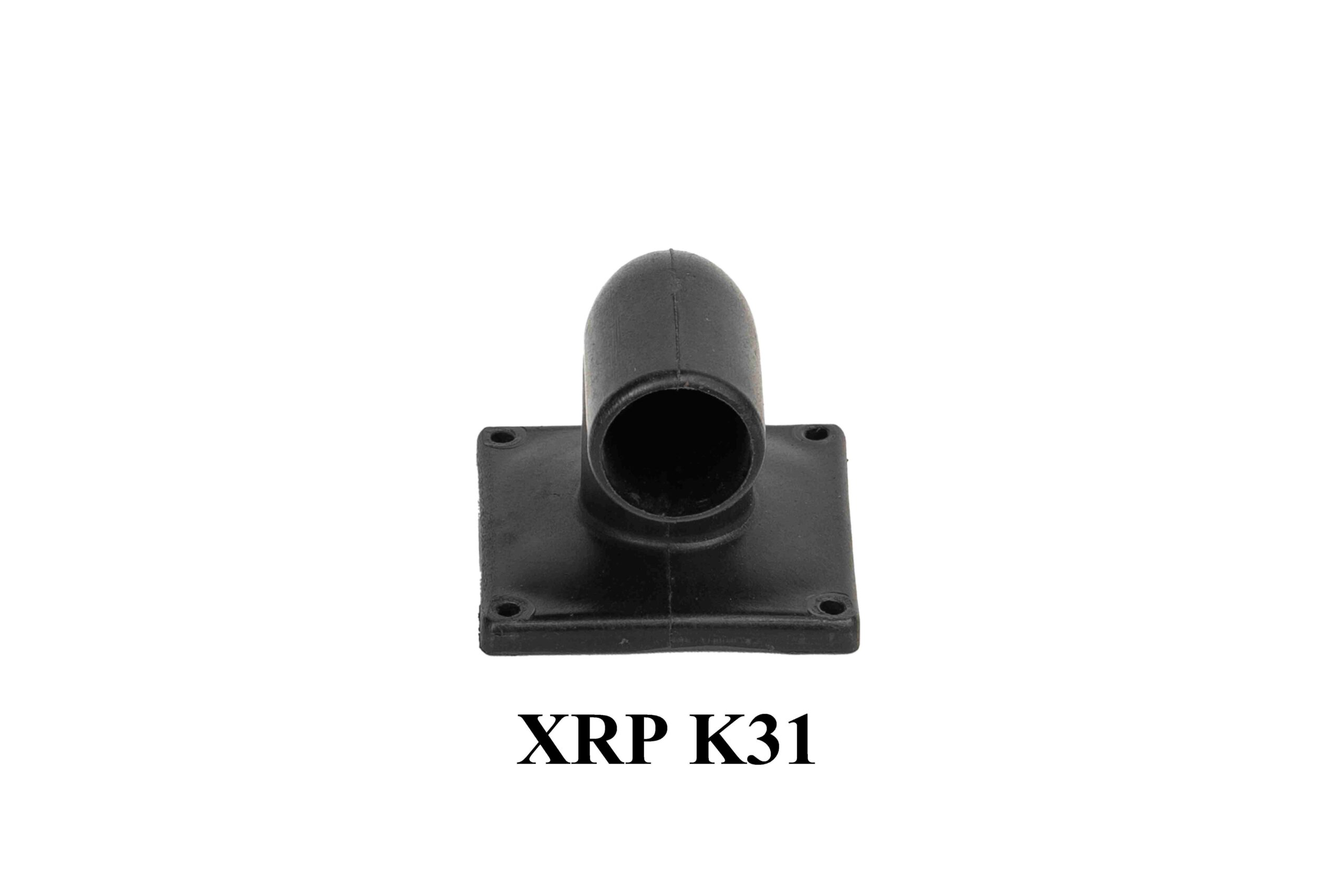

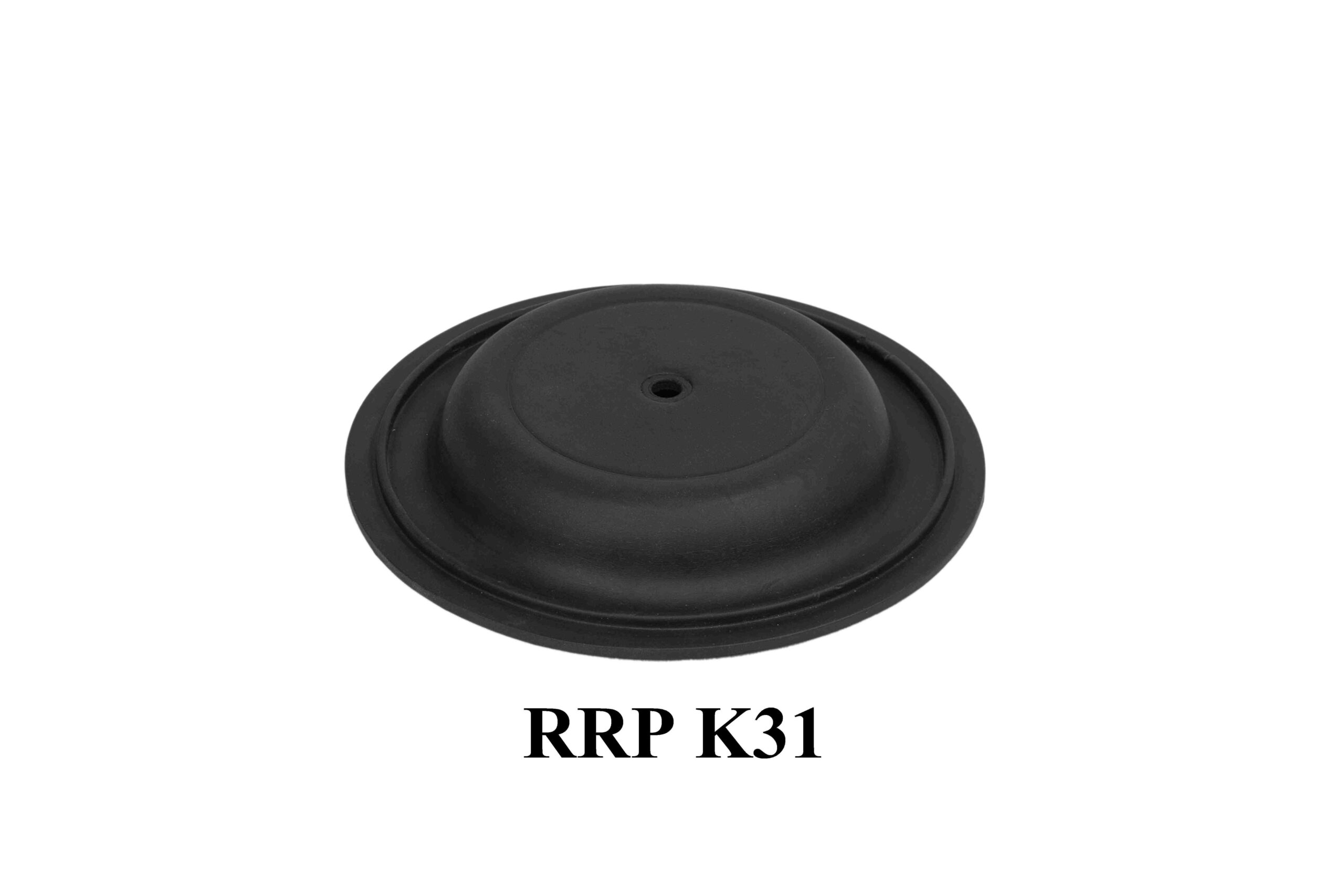

| RRP K31 | Internal Rubber Diaghragm | ||||

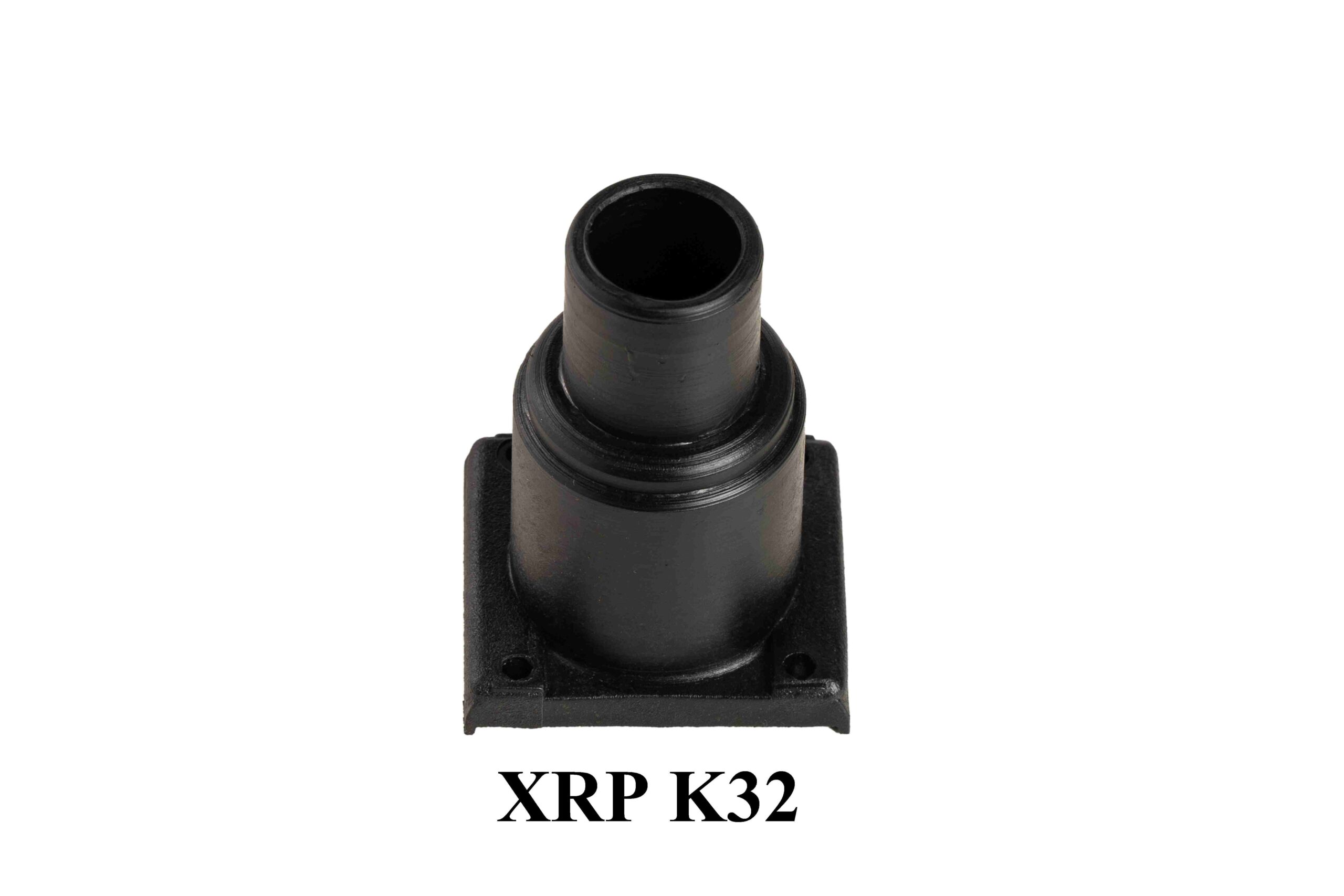

| RRP K32 | Inlet Outlet Flap Valve | ||||
| XRP K31-20 | 3/4″ Inlet Hose Connector | ||||
| XRP K32-20 | 3/4″ Outlet Hose Connector | ||||
| XRP K31-25 | 1″ Inlet Hose Connector | ||||
| XRP K32-25 | 1″ Outlet Hose Connector | ||||
